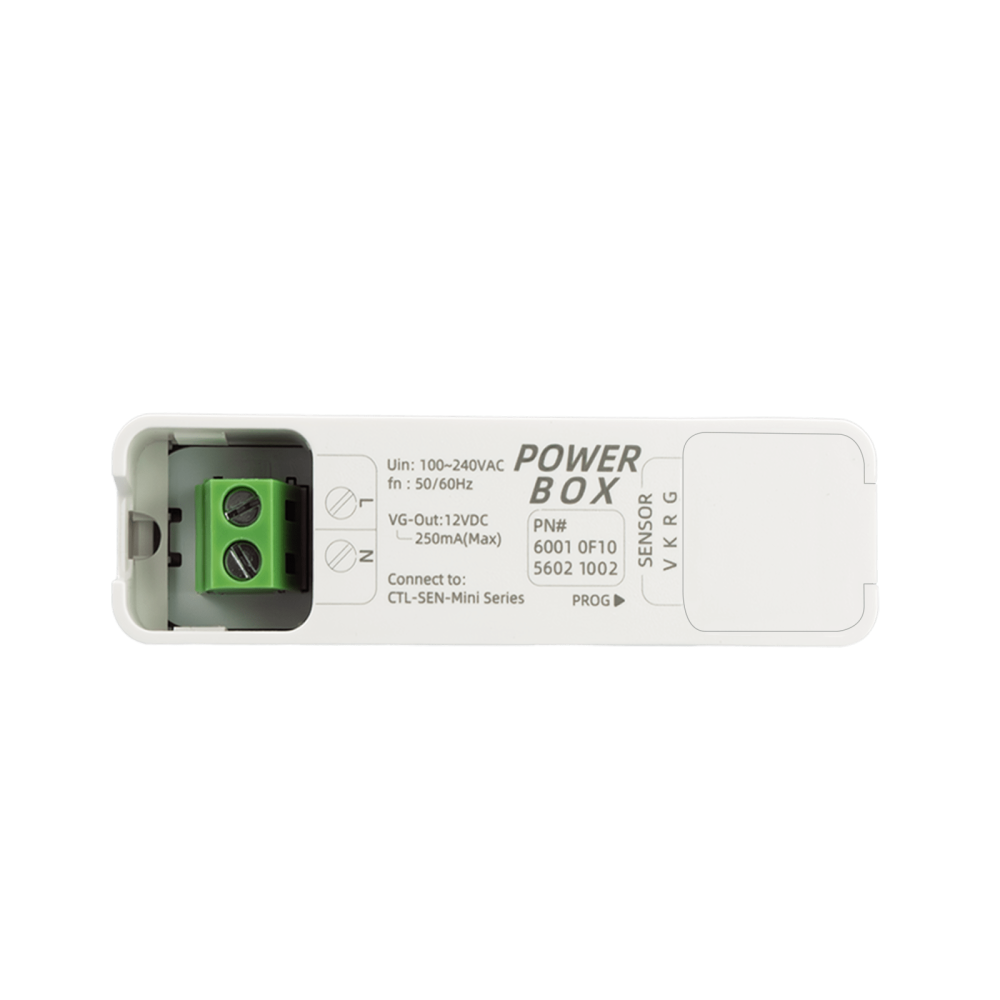

Product Model: CTL-SEN-BOX/F10
Color: White
| Designation | Value |
| Input Voltage | AC 100 ~ 240V |
| Output Voltage | DC 12V (250mA) |
|
Product Dimensions
|
75mm * 20mm * 22mm |
|
Box Weight
|
28g
|
|
Installation Method
|
Concealed installation
|
|
Wiring Method
|
Terminal Block (0.5 - 2.5mm²)
|
| Operating Temperature |
Indoor -20 ~ 45℃
|
|
Storage Temperature
|
-40 ~ 85℃
|
|
Relative Humidity
|
＜ 95%
|
|
Protection Class
|
IP20
|
|
Shell Material
|
Flame-retardant PC (UL94 V-0) |
TECHNICAL SUPPOR TINFORMATION
Creatrol Support Hours: 9:00am-6:00pm CST(China Standard Time)
Phone:(+86)021-54325789
Email: contact@creatrol.com
WARRANTY INFORMATION
Limited Hardware Warranty-Creatrol warrants its hardware product to be free from defects in material and workmanship during the warranty period. lfthe hardware proves to be defective in material or workmanship during the warranty period. Creatrol will, at its sole option, repair or replace the product with a like product. The warranty extends only to products purchased directly from Creatrol Corporation or an Authorized Creatrol Dealer. For complete limited warranty information, including details on purchaser legal rights as well as limited warranty exclusions, visit Service Policy.
RMA INFORMATION
For RMAs contact Tech Support at (+86)021-54325789 or refer to the Online RMA Procedure.
