Home > R5 Series > R5_KNX Series > 60GHz Millimeter Wave Radar Module
  • 60GHz Millimeter Wave Radar Module
  • 60GHz Millimeter Wave Radar Module
1/1
  • 60GHz Millimeter Wave Radar Module
  • 60GHz Millimeter Wave Radar Module

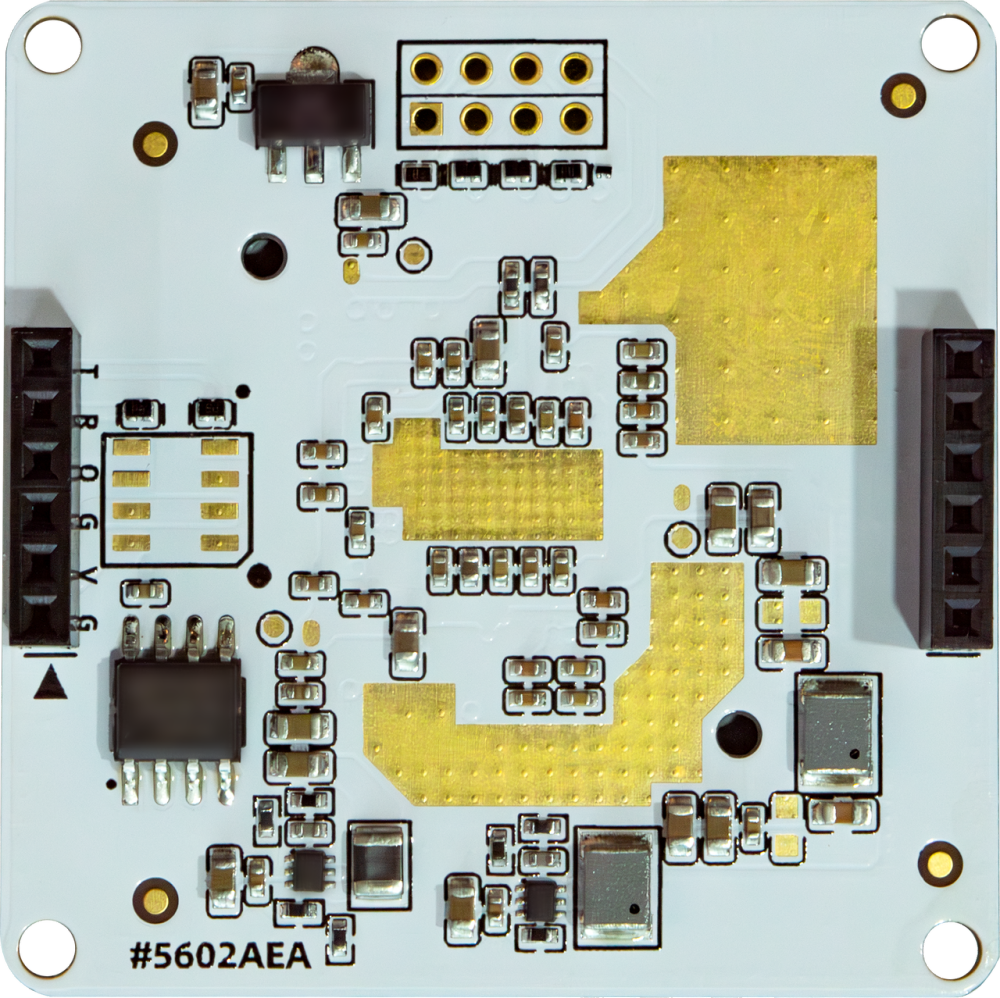

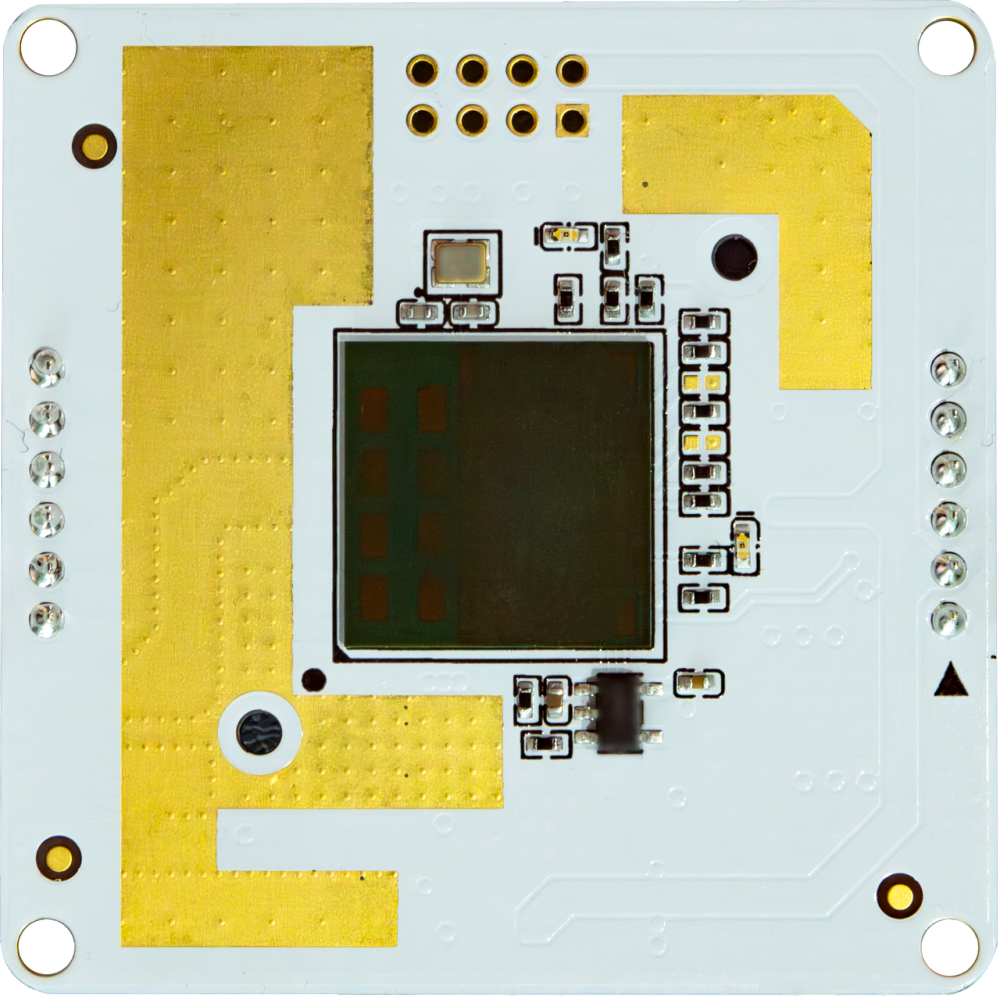

60GHz Millimeter Wave Radar Module

No.CTL-SEN-M/680
SKU: 60.09.0680

Product Model: M680

60G mmWave Radar Sensor Module 4D Spatial Sensing/Micro-motion Detection/Zoning/Ultra-high Resolution in one.

Using an industrial-grade radar SoC and a 4T4R antenna array, 4D spatial sensing is performed through pre-loaded and factory-calibrated algorithms, enabling ultra-high resolution detection, enhanced micro-motion monitoring, and precise zoning capabilities for seamless integration.


Operating Frequency: 60 GHz~64 GHz
Detection Angle: 360°
Installation Height: 2.5 - 3.2 meters
Detection Range: ≤ φ6.0 m
Module Dimensions: 40mm*40mm*4mm
Communication Mode: UART
Power Input: DC 5V/1A
Working Environment: Temperature -10~50℃
0.0 (0 Reviews)
0 Sold
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (0)
  • 60GHz Millimeter Wave Radar Module
  • 60GHz Millimeter Wave Radar Module
  • 60GHz Millimeter Wave Radar Module
  • 60GHz Millimeter Wave Radar Module
1/1
  • 60GHz Millimeter Wave Radar Module
  • 60GHz Millimeter Wave Radar Module
  • Description
  • Resources

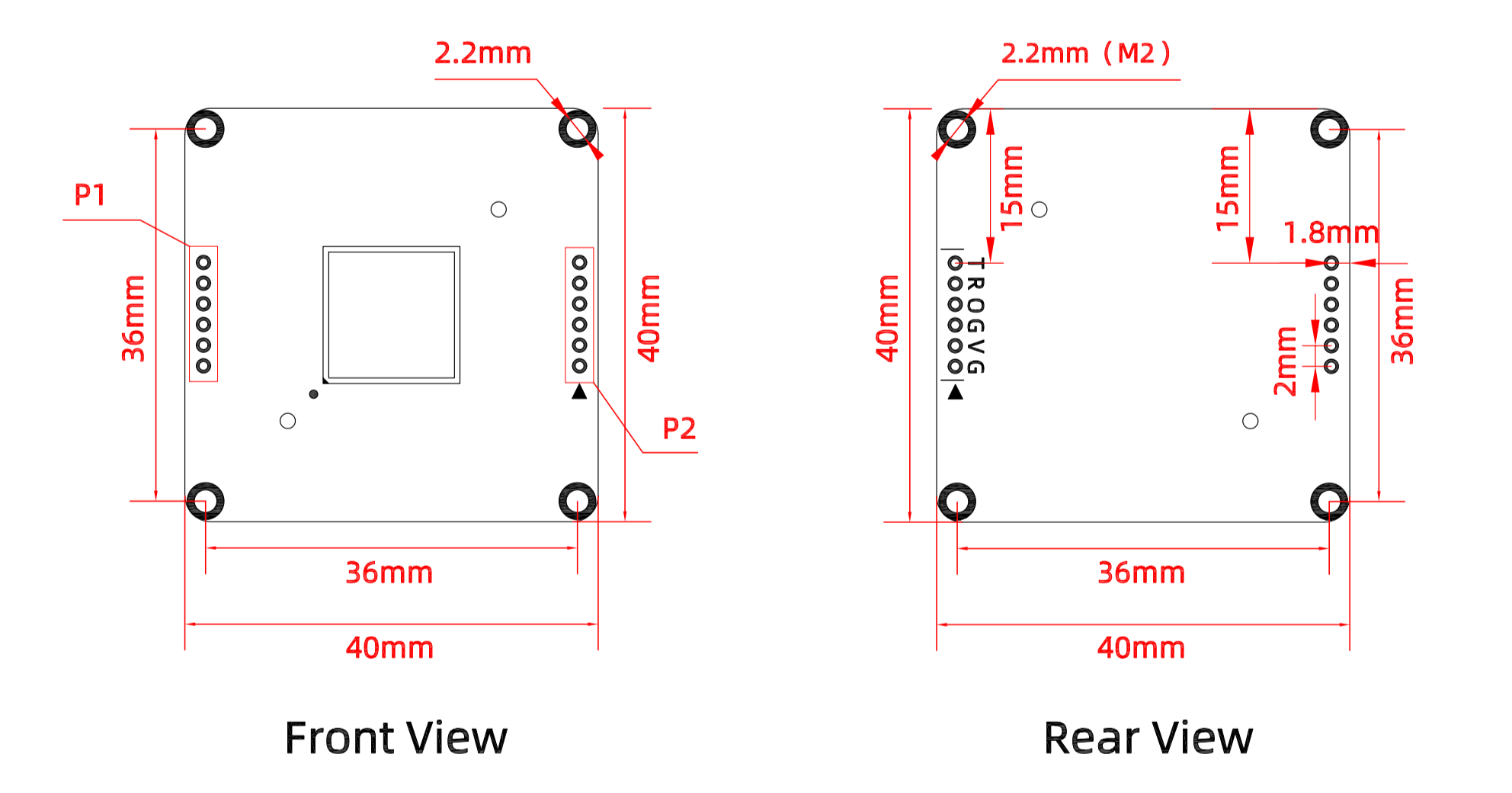

The radar module is installed via a connector.

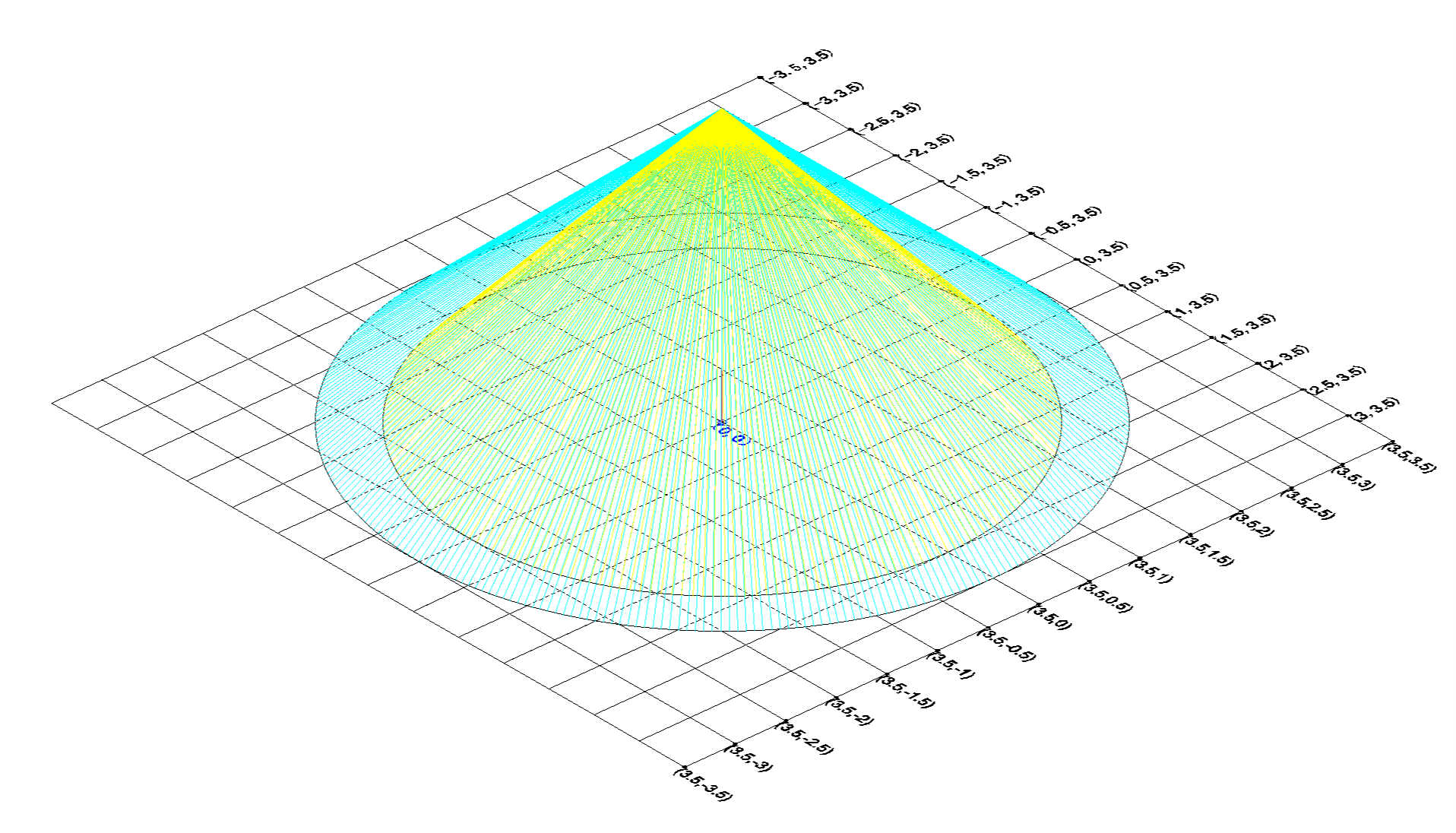

Detection Range


As shown in the figure above, the radar module is installed at a height of 2.7 meters, and the projection of the radar onto the ground is at the coordinates (0,0,0).
Fall Detection & Stationary Object Detection Range ≤ φ5.0m
Trajectory Tracking & People Counting Detection Range ≤ φ6.0m
Guides & Manuals
Spec Sheet: M680                      PDF PDF下载
