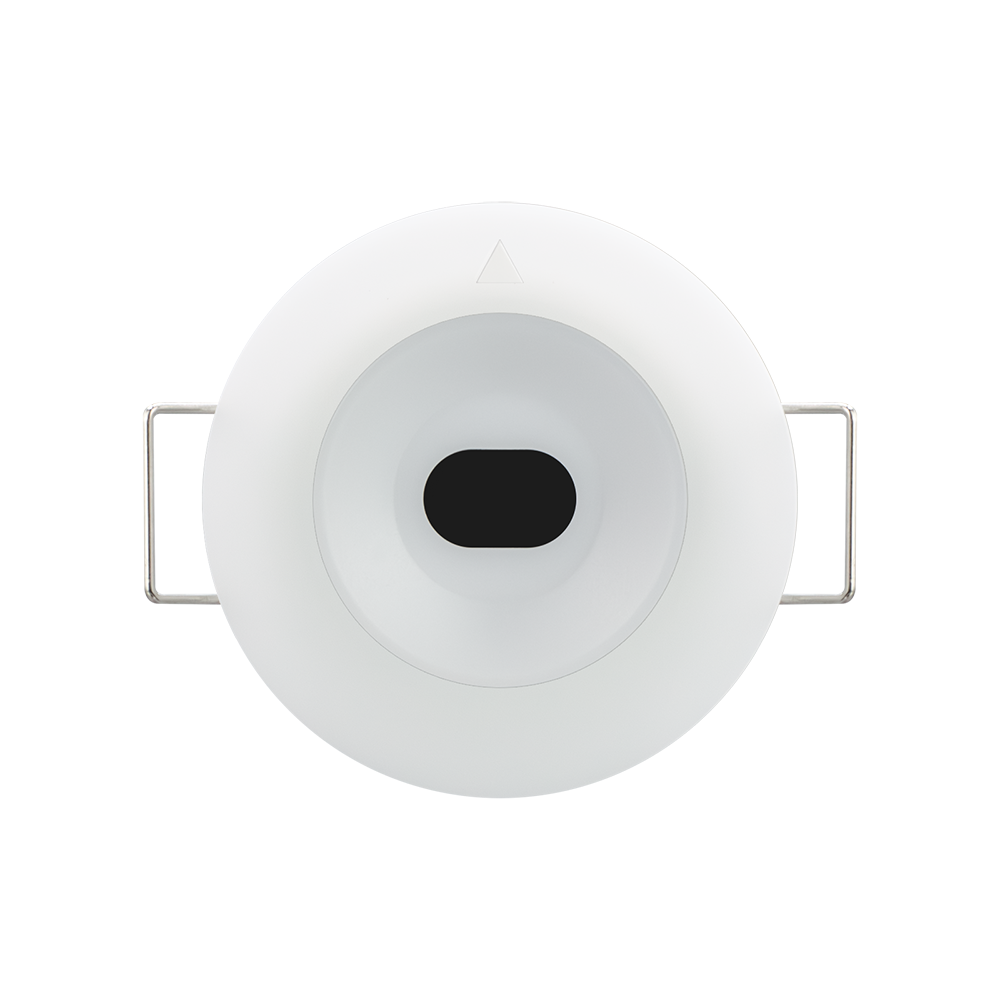

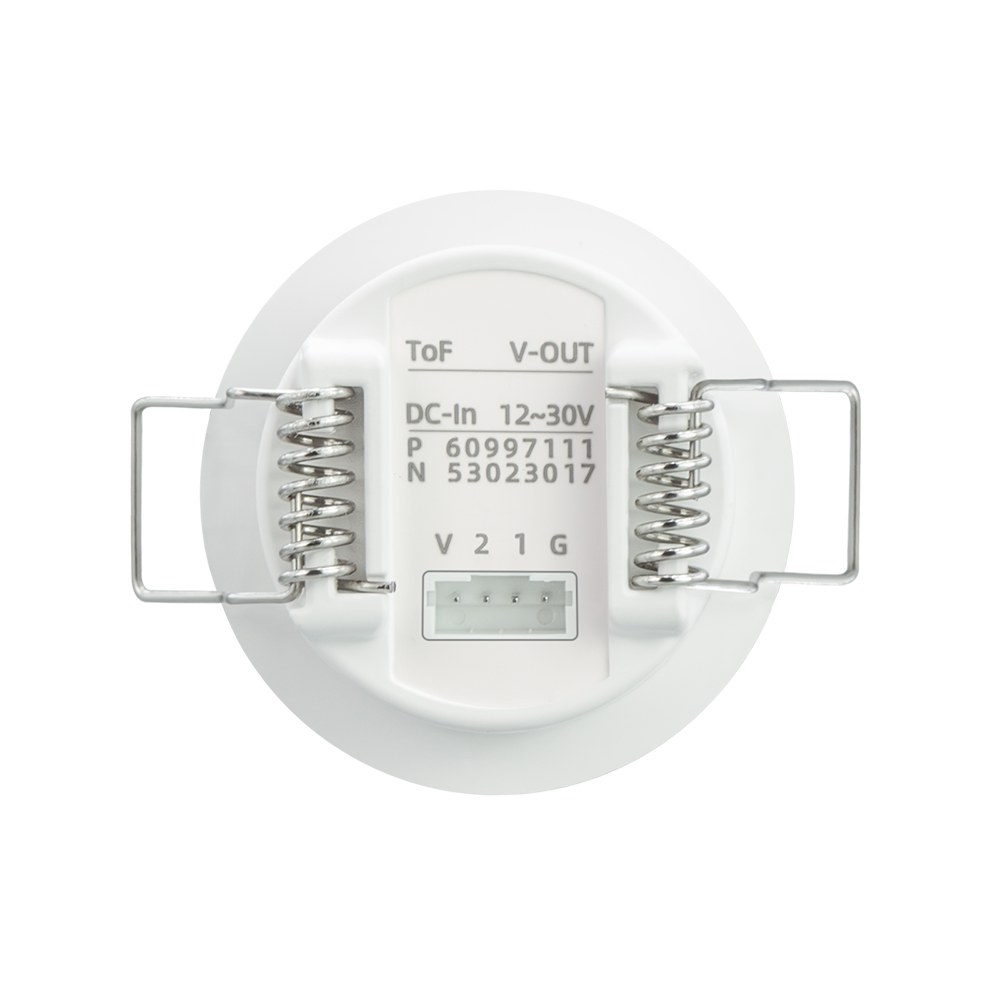

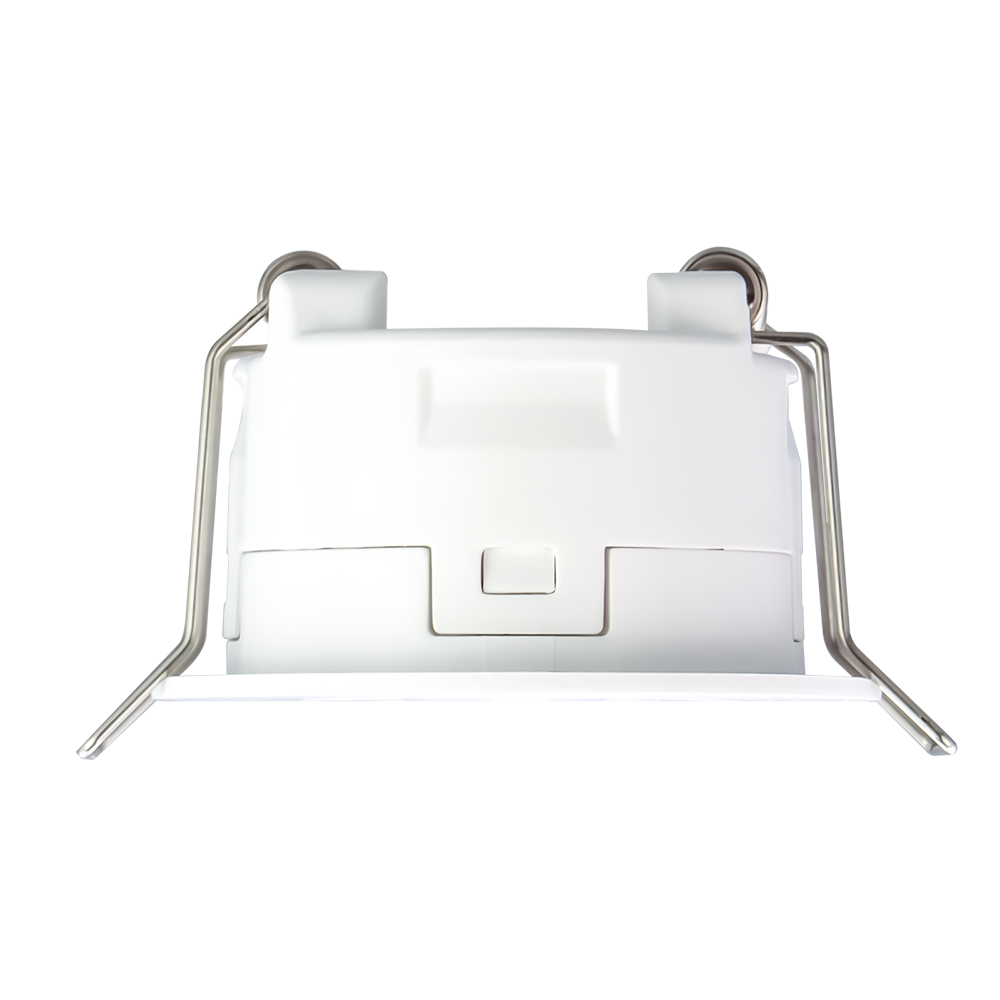

Mini ToF Ranging Occupancy Sensor (2 Switch)

No.Mini-ToF-S2
SKU: 60.99.7111.F22
Product Model: CTL-SEN-Mini/7111.F22

Precise small range, occupancy detection, precise distance detection

A high-precision, miniaturized distance measurement sensor features accurate measurement from 0.1 to 3.2m, high anti-interference capability, and fast response characteristics.

Installation Height: 2~4m (Ceiling)
Detection Angle: 11 °
Detection Range: φ0.4m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: AC100~240V
Output: 2 Channel Switch (1KW per CH)
4.9 (97 Reviews)
17985 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (195)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
1/1
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)
  • Mini ToF Ranging Occupancy Sensor (2 Switch)

ToF Ranging

ToF Ranging
Occupancy Detection

Occupancy Detection

0.1-3.2m Distance

0.1-3.2m Distance
15° Ultra-Narrow Angle

15° Ultra-Narrow Angle
Lux Sensing

Lux Sensing
  • Description
  • Features
  • Resources
  • Accessories

      Precise Narrow-Angle Ranging Capability

Using Time of Flight (ToF) technology, it achieves narrow-angle detection at 11°, allowing for accurate positioning detection within a small range. It also provides high-precision ranging functions, accurately detecting the distance between the target object and the sensor, offering high-precision depth information.

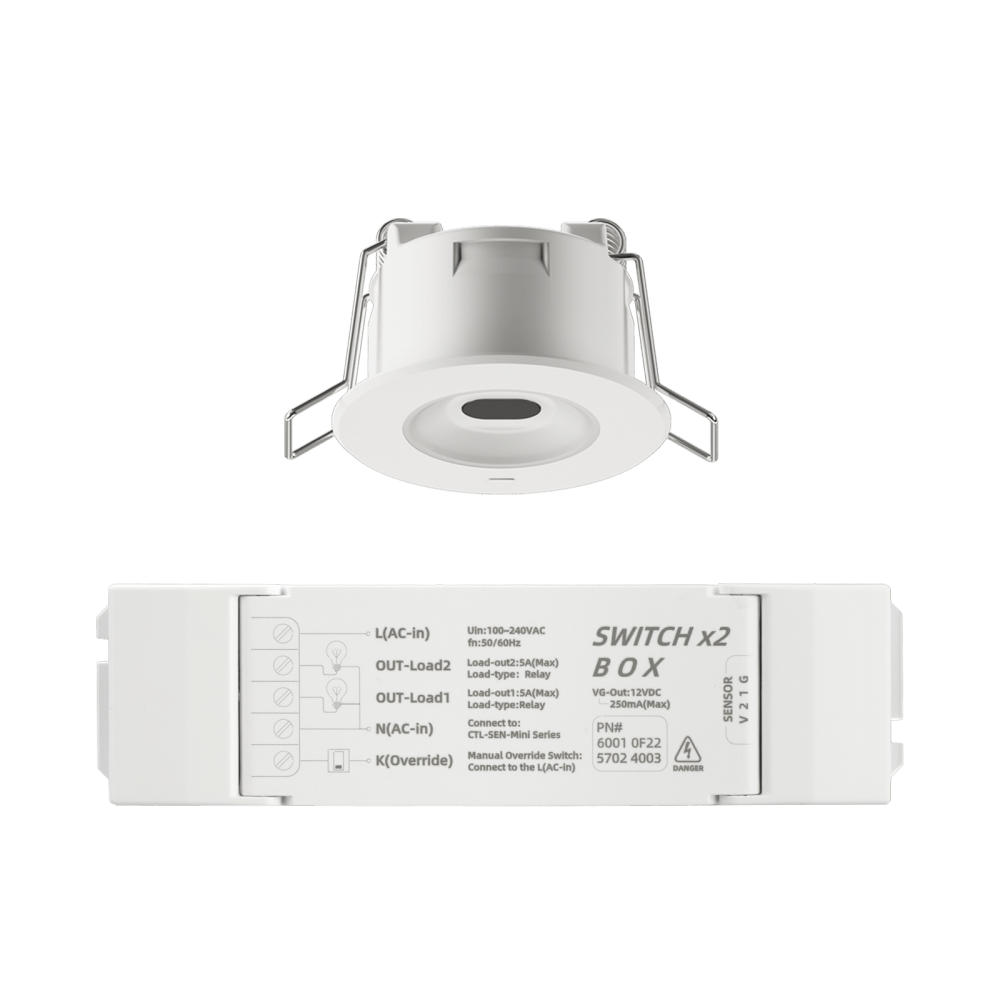

      Comes with Two Lighting Control

The sensor comes with two built-in light control cables, each supporting a 1kw circuit load. This makes it easier to connect to lamps and control them, enabling seamless intelligent operation.

      Built-in Digital Illuminance Measurement Chip

This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human  presence and occupancy but also monitor the surrounding light intensity, providing data support for intelligent lighting control.

       Ultra Small Size

This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment.

      Multiple Installation Methods

It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods.

Designation Value
Detection Mode

ToF

Time-of-flight sensor
Install Height

2.0 ~ 4.0 meters
Detection Angle

11°

Detection Range
When the detection distance is set between 0.1 and 3.2 meters,
When set to 2.0 meters, the range diameter is 0.4 meters
(Note that pure white and black colors will reduce detection accuracy)

Detection Distance

0.1 ~ 3.2 meters
Illuminance Sensing 0 ~ 32000 Lux (Accuracy ± 4%)

Product Dimensions
φ43mm * 35mm * 25mm

Cutout Dimensions

φ35mm  Depth ≥ 10cm
Sensor Weight 18g
Box Weight 88g

Working Environment

Temperature -20 ~ 45℃    Humidity < 95%

BOX Power Input

AC 100 ~ 240V

Relay load

≤ 5A

BOX Power Output

DC 12V (Power consumption < 0.5W)

Output

2 Channel Switch (1KW)
LED Indicator Light ① Receive the configuration command and flash for 3 seconds
② It is always on when someone is detected, and the brightness of the indicator light automatically adjusts with the ambient illumination
③ Can be set to off mode (does not light up when detecting someone)

Guides & Manuals
Spec Sheet: Mini-ToF-S2                      PDF PDF下载
Accessories for Installation
Mini-65 Mini-Embedded Parts
Max 65mm Opening
Remedial Ring

For Oversize Holes:
Secure Installation
 Embedded Parts
Frameless Installation

For Wall/Ceiling Pre-Install:
Flush & Invisible
