Home > ECO Series > 60999E11-Hotel ECO Master Control Switch (Wired)
  • 60999E11-Hotel ECO Master Control Switch (Wired)
1/1
  • 60999E11-Hotel ECO Master Control Switch (Wired)

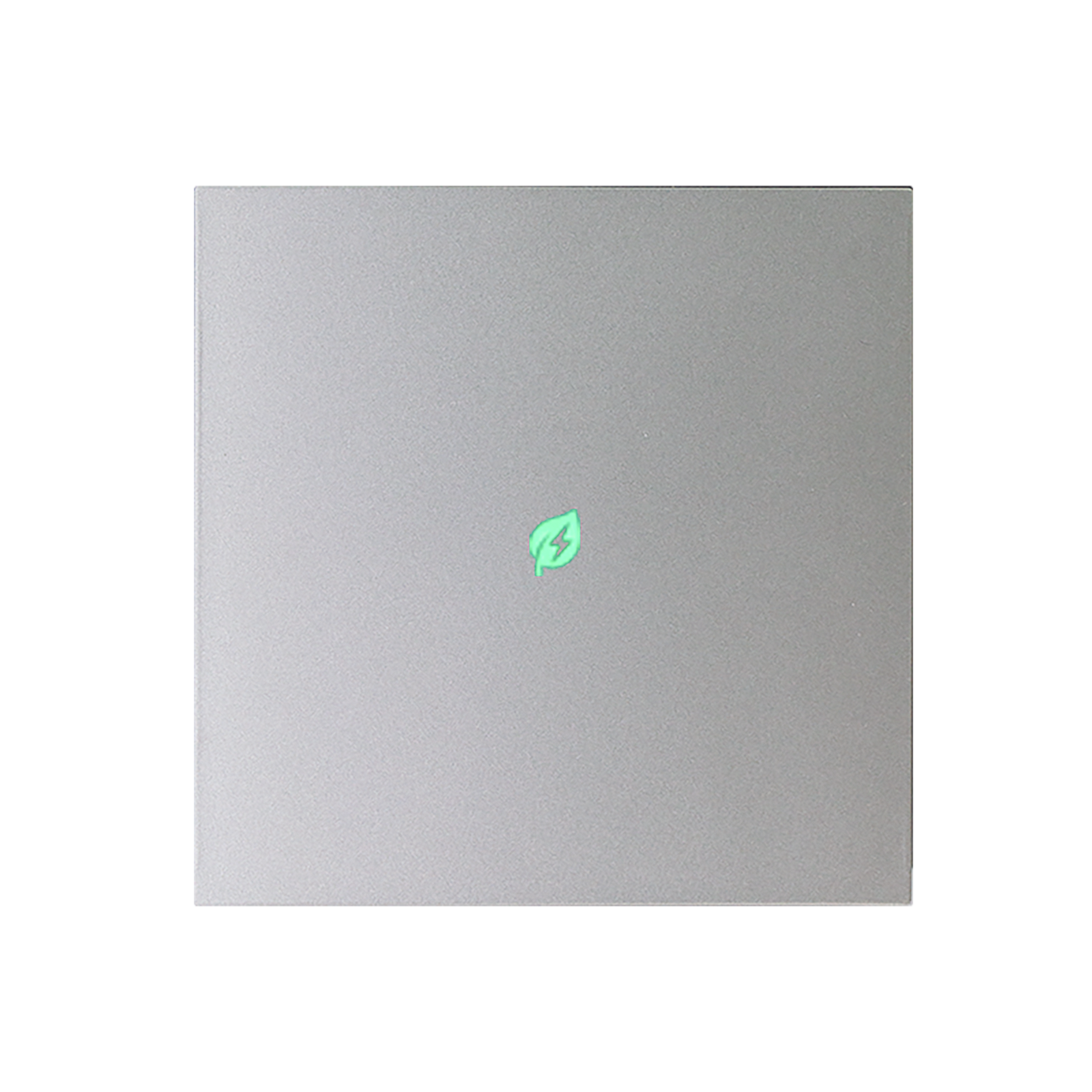

Hotel ECO Master Control Switch (Wired)

No.ECO-KP-485
SKU: 60.99.9E11

Product Model: CTL-SEN-Mini/9E11

Acts as the master control unit for the multi-sensor network, The central hub for processing sensor data and controlling room power.


Installation Method: 86-type junction box (Installation height 1.0-1.5m)
Color: White

*Buying separately may result in the inability to use all features

4.8 (45 Reviews)
3485 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (32)
  • 60999E11-Hotel ECO Master Control Switch (Wired)
  • 60999E11-Hotel ECO Master Control Switch (Wired)
1/1
  • 60999E11-Hotel ECO Master Control Switch (Wired)

Creatrol Algorithm

Creatrol Algorithm
Hotel-Specific

Hotel-Specific
Zero-Code Setup

Zero-Code Setup
Low-Cost Installation

Low-Cost Installation
Privacy Protection

Privacy Protection
  • Description
  • Features
  • Resources
It is responsible for aggregating data from various sensors, performing logical processing, and ultimately controlling the switching of the guest room's power supply, achieving intelligent "Power On with Presence, Power Off when Vacant" management. Communicates via RS485.
Designation Value
Customer Communication Type RS 485
Number of Access Devices 1~7
Power Input AC100~240V（50~60Hz）
Power Consumption ≤0.5W
Output Current ≤30A
Installation Height 1.0~ 1.4 meters
Product Size 86mm*86mm*35mm
Installation Method Wall Standard 86 Bottom Box
Product Weight 140g
Depth of Embedding
25mm
Working Environment Temperature -20 ~ 45 ℃ Humidity < 95%
Storage Temperature -40℃~85℃
LED Indicator Light
RGB light on/off: Power on
Green light stays on: Occupied
Red light stays on: No one present
Green light flashes once per second: Unattended delay
Yellow light flashes for 1 second/1 time (flashes for 1 minute): The door magnetic power is < 20%, and the buzzer sounds for 1 second/3 times when the door is triggered, and rings 3 times.
Yellow light stays on: Sensor malfunction or disconnection
