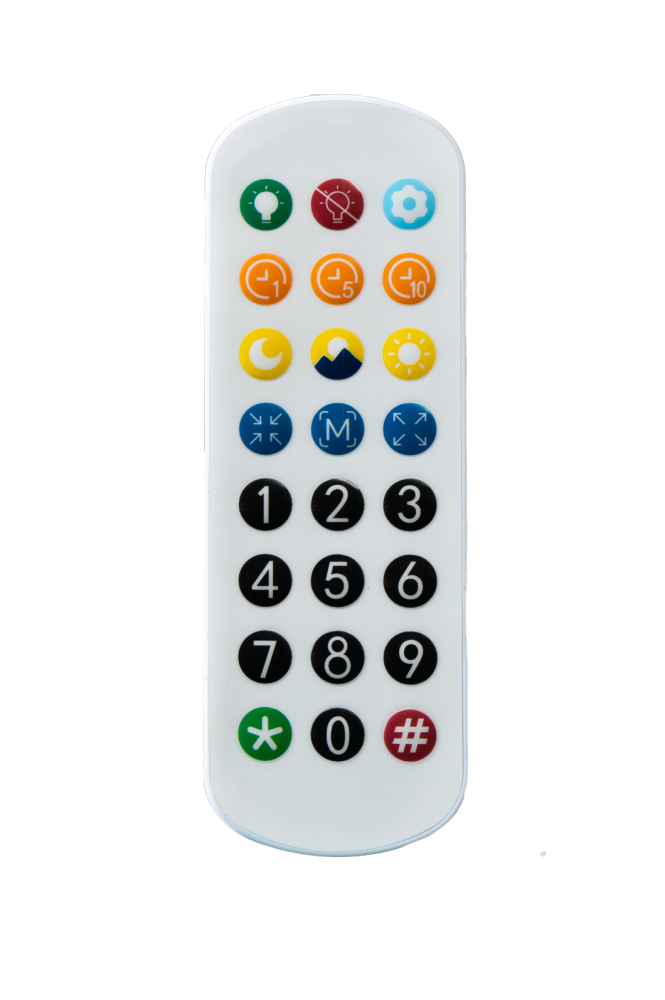

Remote Controller
No.RC1
P/N: 60.99.00C1
The sensor debugging remote control is a high-efficiency configuration tool specifically designed for the Creatrol series sensors.
1/1
The sensor debugging remote control is a high-efficiency configuration tool specifically designed for the Creatrol series sensors. It communicates with devices via infrared signals, effectively solving the pain point of difficult parameter adjustment due to spatial constraints after sensor installation. With its rich support for functional codes, this tool enables non-destructive debugging of 5.8G, 24GHz, and 60GHz mmWave radars and ToF sensors. Without disassembling the device, users can utilize the full numeric keypad (0-9) to precisely configure complex logic, including delay time, illuminance thresholds, detection sensitivity, and multi-segment detection distances. Additionally, it supports system-level operations such as one-click network pairing, one-click setting of the sensor breathing light, and quick settings for delay and lighting. Working in tandem with the sensor’s indicator light (breathing, flashing, and steady states), it provides intuitive real-time feedback to ensure efficient and accurate site engineering setup.
| Power supply mode | CR2025 or CR2032 Lithium Coin Battery (3 V) |
| Communication Method | Infrared |
| Emission Wavelength | 940 nm |
| Carrier Frequency | 38 kHz |
| Effective Distance | ≤ 10 m |
| Dimensions | 123 mm * 42 mm * 8 mm |
| Thickness | 8 mm |
| Weight | 20g (excluding batteries) |
| Color | White |
| Material | ABS |
| Flammability Rating | UL94 V-0 |
