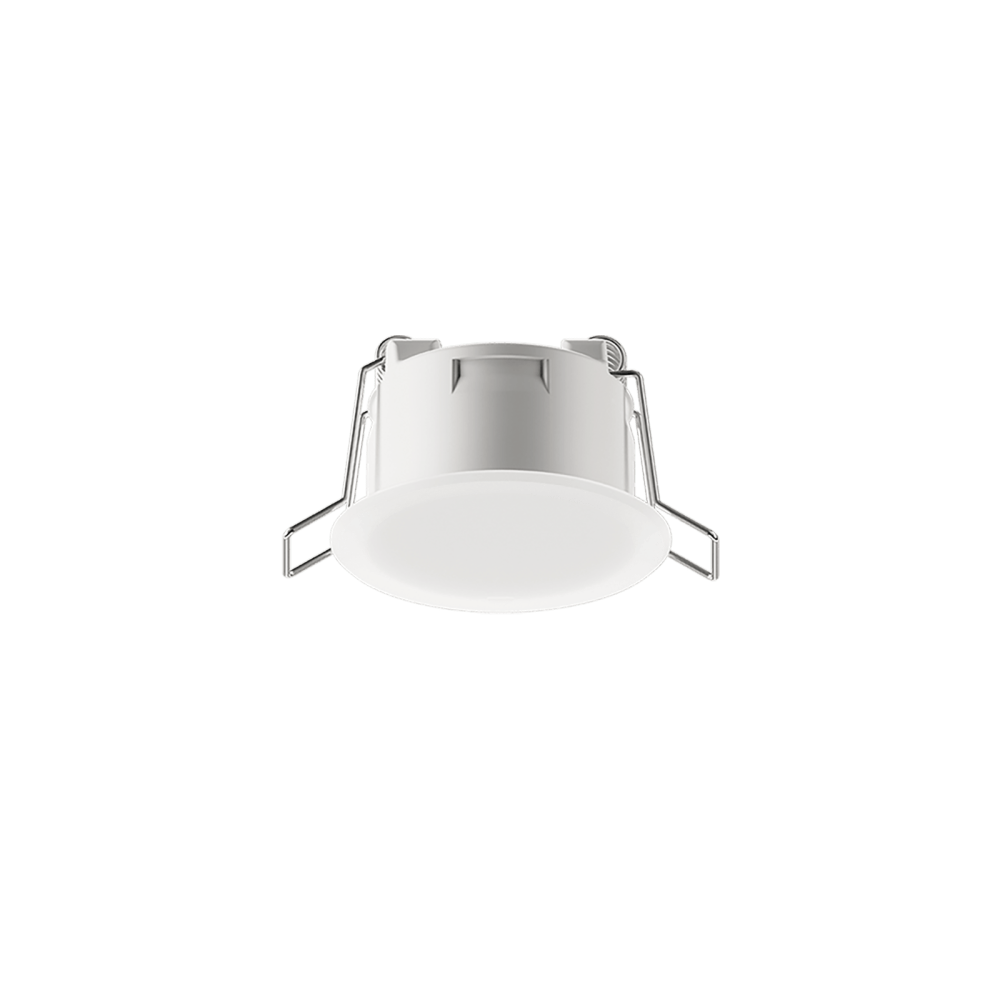

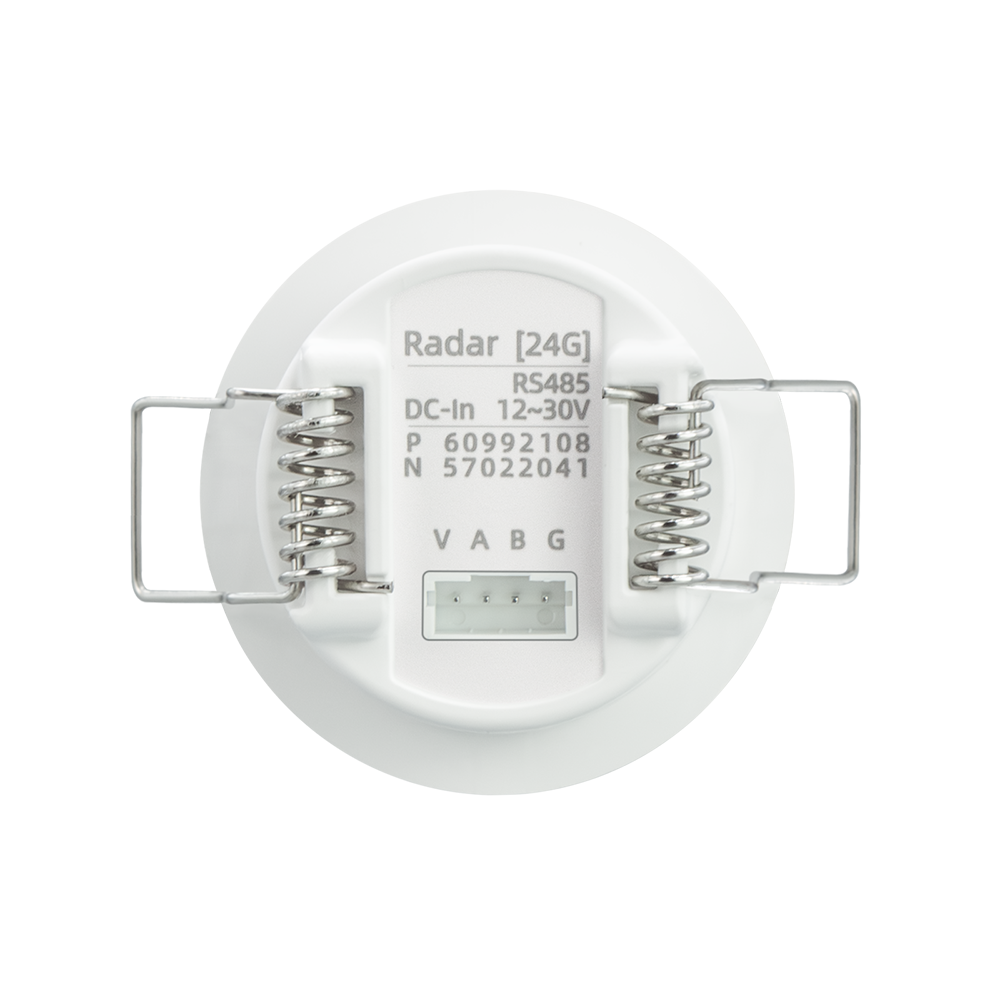

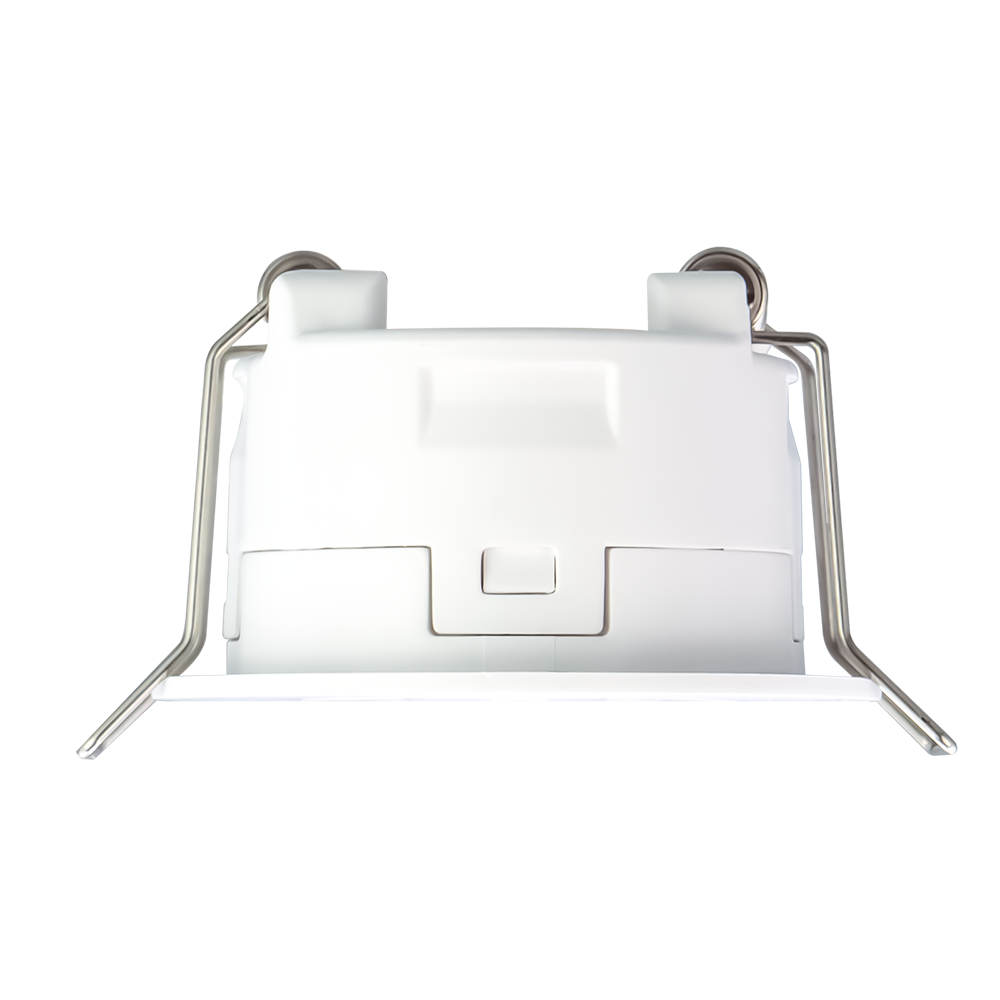

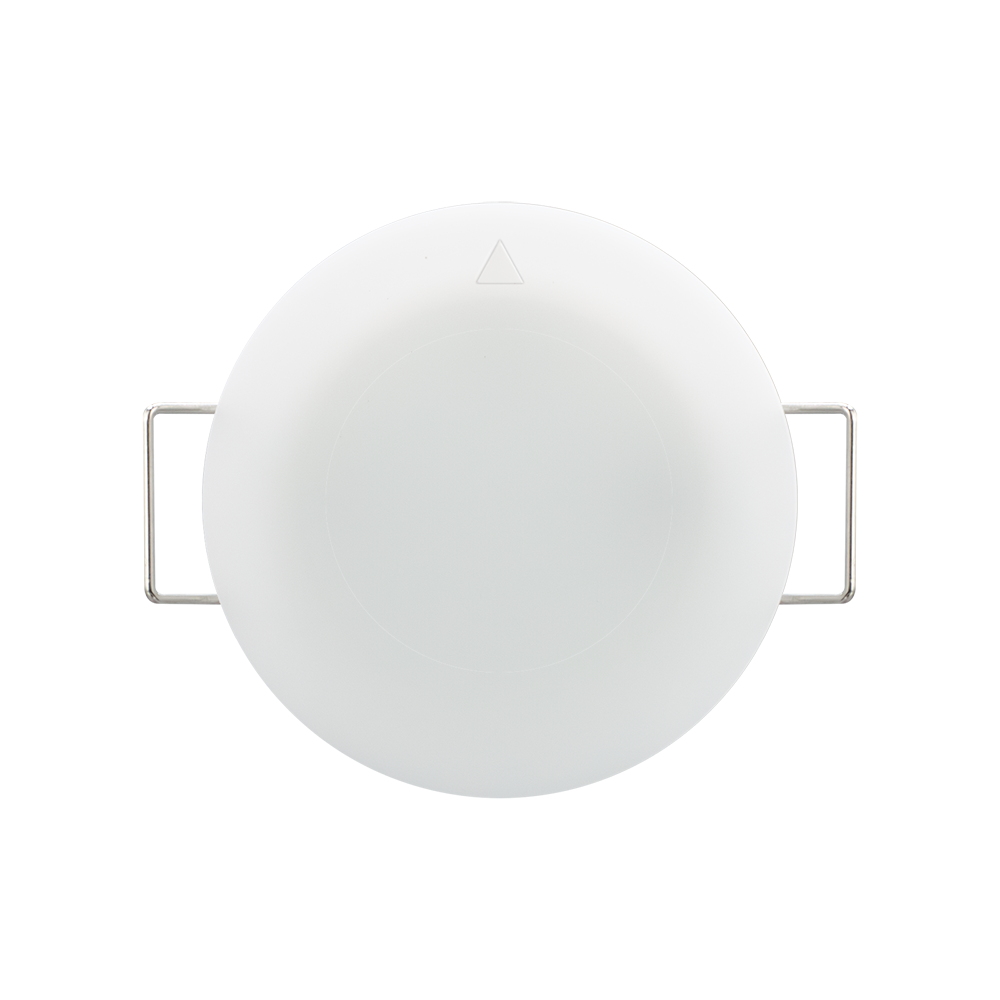

Mini 24G Radar Presence Sensor (RS485)
No.Mini-24G-485
The CTL-SEN-Mini/2108 is a compact, high-precision presence sensor powered by advanced 24GHz FMCW mmWave technology.
1/1
The CTL-SEN-Mini/2108 is a compact, high-precision presence sensor powered by advanced 24GHz FMCW mmWave technology. Designed for discreet, premium applications, it features a miniature form factor (Φ35 mm cutout) while offering a detection diameter of up to 8.0 m. It integrates a high-precision lux sensor (0–32,000 Lux) for advanced lighting automation.
1.5 to 8.0 m (sensor to target)
| Communication Type | RS485 |
| Input Voltage | DC 12 to 30 V |
| Power Consumption | 0.5 W (Max) |
| Serial Port Settings | Baud Rate: 1200 to 115200 Data Bits: 8 Parity: None, Even, Odd Stop Bits: 1, 2 Default: 9600, 8, None, 1 |
| Address Range | 01 to 99 (Decimal) |
| Indicator Light | LED |
| Detection Mode | 24GHz FMCW Radar |
| Operating Frequency | 24.00 to 24.25 GHz |
| Transmit Power | ≤ 10 dBm |
| Installation Method | Recessed Ceiling Mount |
| Mounting Height | 2.0 to 4.0 m |
| Detection Angle | 360° |
| Detection Coverage | Installation at 3.0 m Height: ① Motion & Micro-motion: Detection diameter at least 8.0 m ② Stationary Presence: Detection diameter at least 6.0 m |
| Detection Range | 1.5 to 8.0 m (sensor to target) |
| Sensitivity | 0 to 100% |
| Illuminance Monitoring | 0 to 32,000 Lux (Accuracy ±4%) |
| Delay Time | 1 to 3,600 seconds |
| Product Size | Φ43 mm x 25 mm |
| Cutout Size | Φ35 mm |
| Product Weight | 17.5 g |
| Cable Assembly | UL1007 22AWG Cable Length: 150 mm |
| Operating Environment | Indoor -20 to 45°C Humidity < 95% RH (Non-condensing) |
| Storage Temperature | -40 to 85°C |
| Protection Level | IP20 |
| Housing Material | PC |
Interference Avoidance: Avoid installing near constantly moving objects (e.g., curtains, plants) or large reflective surfaces (e.g., metal ducts, mirrors) to minimize false alarms or unintended triggering.
Device Spacing: Maintain a minimum distance of 4 m between multiple sensors to prevent mutual interference.
Mounting: Ensure the installation surface is vibration-free. Note that radar signals can penetrate non-metallic surfaces; avoid moving objects directly behind the installation wall/ceiling.
Wiring Safety: Disconnect power before wiring. Use certified cables and ensure the circuit includes appropriate short-circuit and overload protection.
Disclaimer: Product specifications are subject to change without prior notice for improvement purposes. Please follow all wiring diagrams strictly. The manufacturer is not liable for issues caused by improper installation.
Supports C4 Composer Pro Debugging
